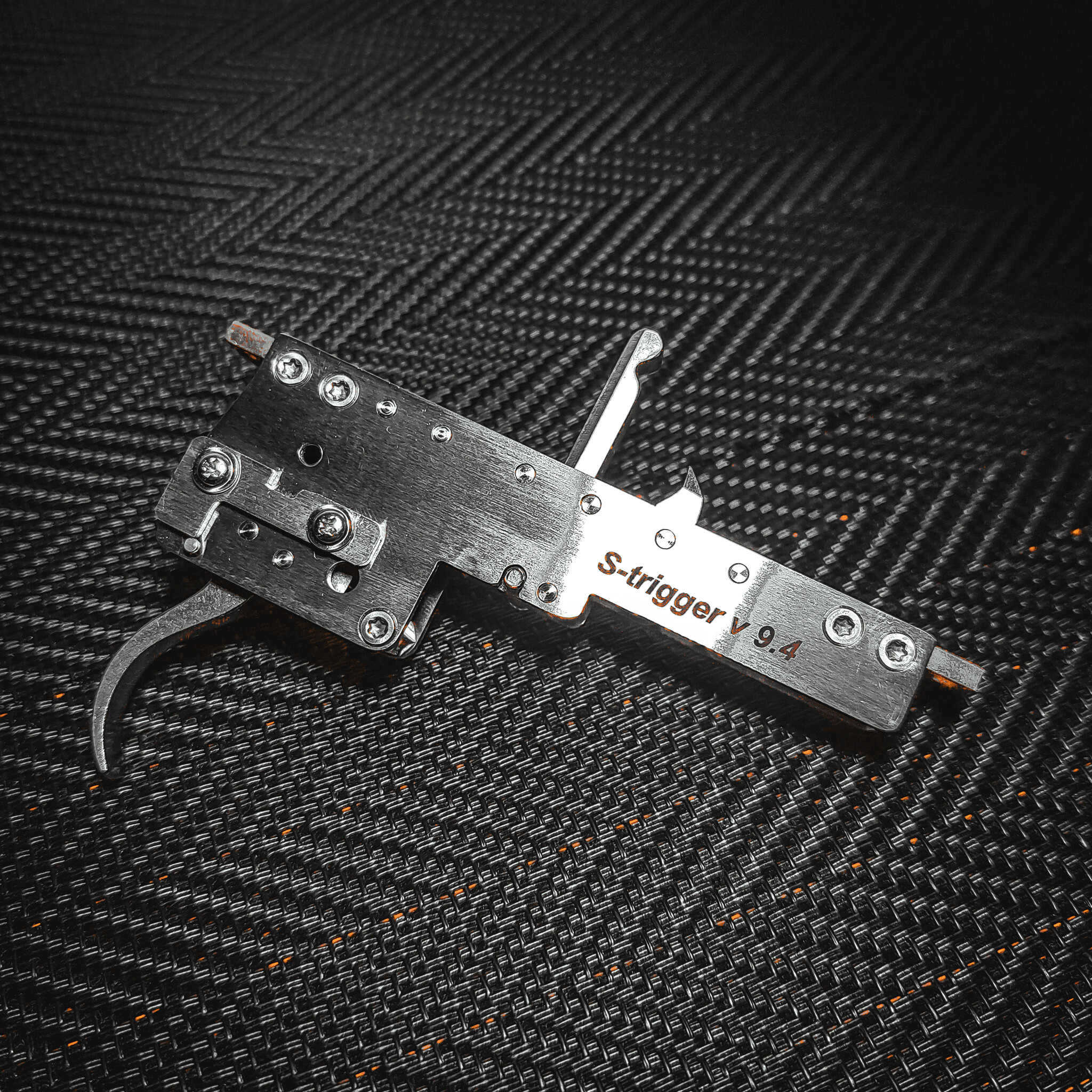

S-trigger v 9.4 VSR10

• 90° trigger system for the TM VSR-10 type of rifles

• Durable, robust 90° design prepared for strongest upgrades

• Designed and manufactured in Slovak Republic

• ALL Stainless steel construction (including fasteners, axles and springs)

• Mounting blocks are made out of brass on a precision CNC machines

• Individual components for the trigger are cut by CNC operated laser cutting machine. Then finished by drilling, tapping, reaming and polishing

• Polished contact points to ensure smooth trigger pull

• Piston catch is returned into the original position by two torsion springs

• One double torsion spring is ensuring the trigger sear returning.

• Easy DROP-IN installation, no modification of the gun or the trigger guard is needed. No brass block removing from the trigger before install

• Preserved safety function (use safety lever from original trigger unit)

• Optimized trigger pull (apx. 0,5 lb with M130 spring and 1 lb with M165 spring installed)

• Adjustable trigger OVER-TRAVEL

• No extra weight (weighs little less than standard alloy 45° trigger) 116 grams

• Slim trigger sear design, similar to Remington 700 trigger.

• Tested up to M190 spring.

• Spare parts available

Package includes :

• S-trigger v 9.4
• Two screws for mounting to the receiver
• One screw and brass cylinder for the safety lever install.

• COMPATIBILITY:

  • Tokio Marui VSR10 - working safety ( tested )

  • JG BAR10 - working safety ( tested )

  • CYMA 701b

  • Well MB-03 / 07 / 10 / 11 - working safety ( tested )

  • HFC VSR-11

  • ASG / VFC Ashbury ASW338LM

  • ASG / VFC M40A3

  • FN Herstal SPR A5M

  • Action Army T10

  • Action Army T11

  • CM.700

  • CM.708

  • Archwick mk13 mod7

  • Classic Army M24 Socom Sniper (New Version) [CA-S016M]

  • SSG10 ( mounting holes need to be enlarged and bigger screws need to be used)  I can do the modifications if you tell me to do so.

  90° PISTONS

  • Springer Custom Works

  • W.A.S.P.

  • ACTION ARMY

  • ASPUK

  • EDGI

  • KING ARMS

  • LAYLAX

  • PDI

  GAS CONVERSION

  90° MANCRAFT SDiK conversion kit
